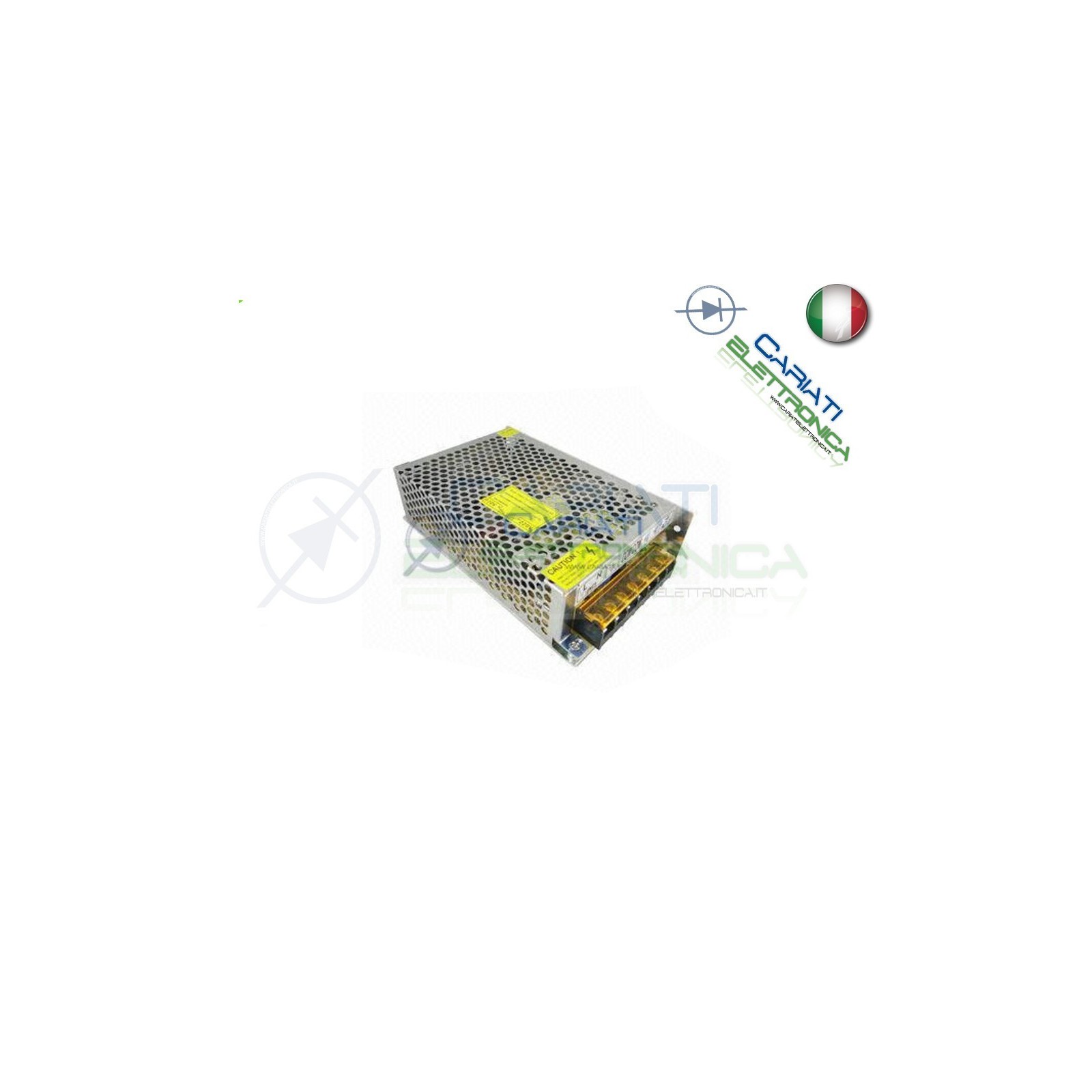

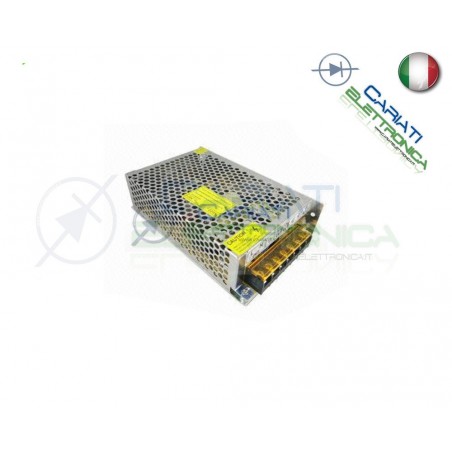

ALIMENTATORE SWITCHING 230Vac 12V 10A 120W
1278
€13.90
VAT included
-
Secure payments (Paypal , TT)
-
Fast ship ( items in stock and ship by courrier)
-
Best support and warranty
Description
ALIMENTATORE SWITCHING 12V 10A 120W
Dimensioni 159×98×35mm
Le sue caratteristiche tecniche sono
| Output voltage tolerance | 12V | |||
| Output voltage tolerance | ±1% | |||
| Rated output current | 10A | |||
| Output current range | 0～10A | |||
| Ripple and noise | 100mVp-p | |||
| Inlet stability | ±0.5% | |||
| Load stability | ±0.5% | |||
| DC output power | 120W | |||
| Efficiency | 85,00% | |||
| Adjustable DC voltage | ±10% | |||
| Input voltage range | 85～264V AC；47-63Hz | |||
| Input current | 0.8A/115V 0.45A/230V | |||
| Impulse current | Cold start-up current 18A/115V36A/230V | |||
| Leakage current | ＜0.5mA/240VAC | |||
| high-temperature protection | 105%～150% style：Cut off the output reset: auto recovery | |||
| Temperature coefficient | ±0.03%/℃（0～50℃） | |||
| Start rising hold time | 200ms,100ms,30ms | |||
| Isolation Resistance | Input and enclosure, Output and enclosure：500VDC/100MΩ | |||
| Working temperature | -10℃～+60℃,20%～90%RH | |||
| Storage temperature | -20℃～+85℃,10%～95%RH | |||
| Size | 159×98×35mm | |||
| Weight | 0.45Kgs | |||
