ALIMENTAIONE: 3.5/4.2V DC 1A max

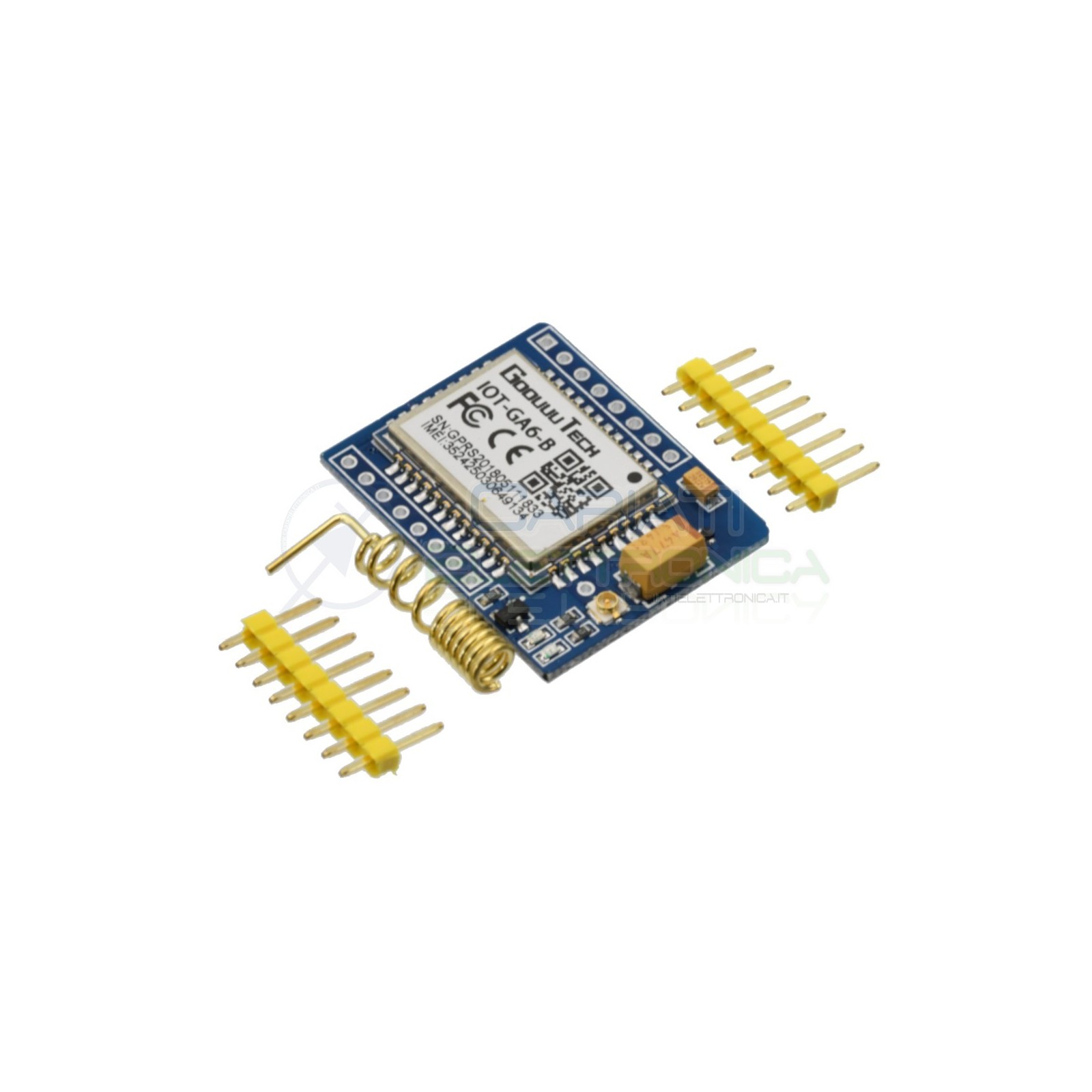

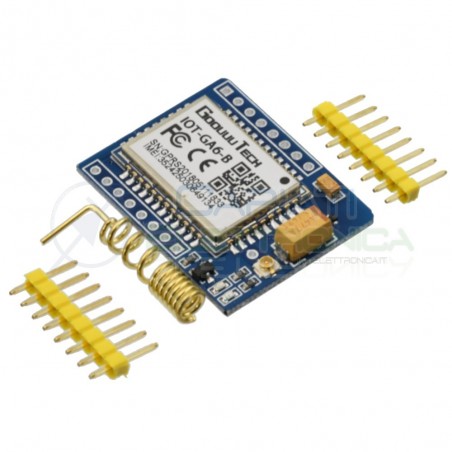

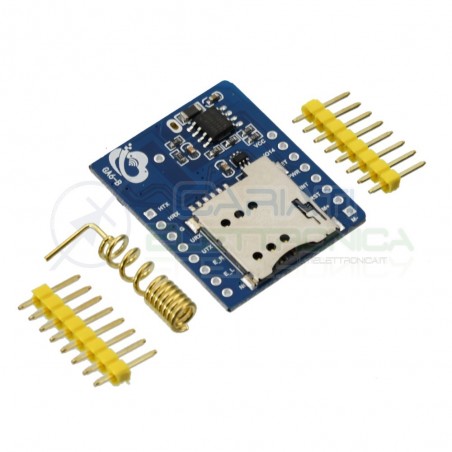

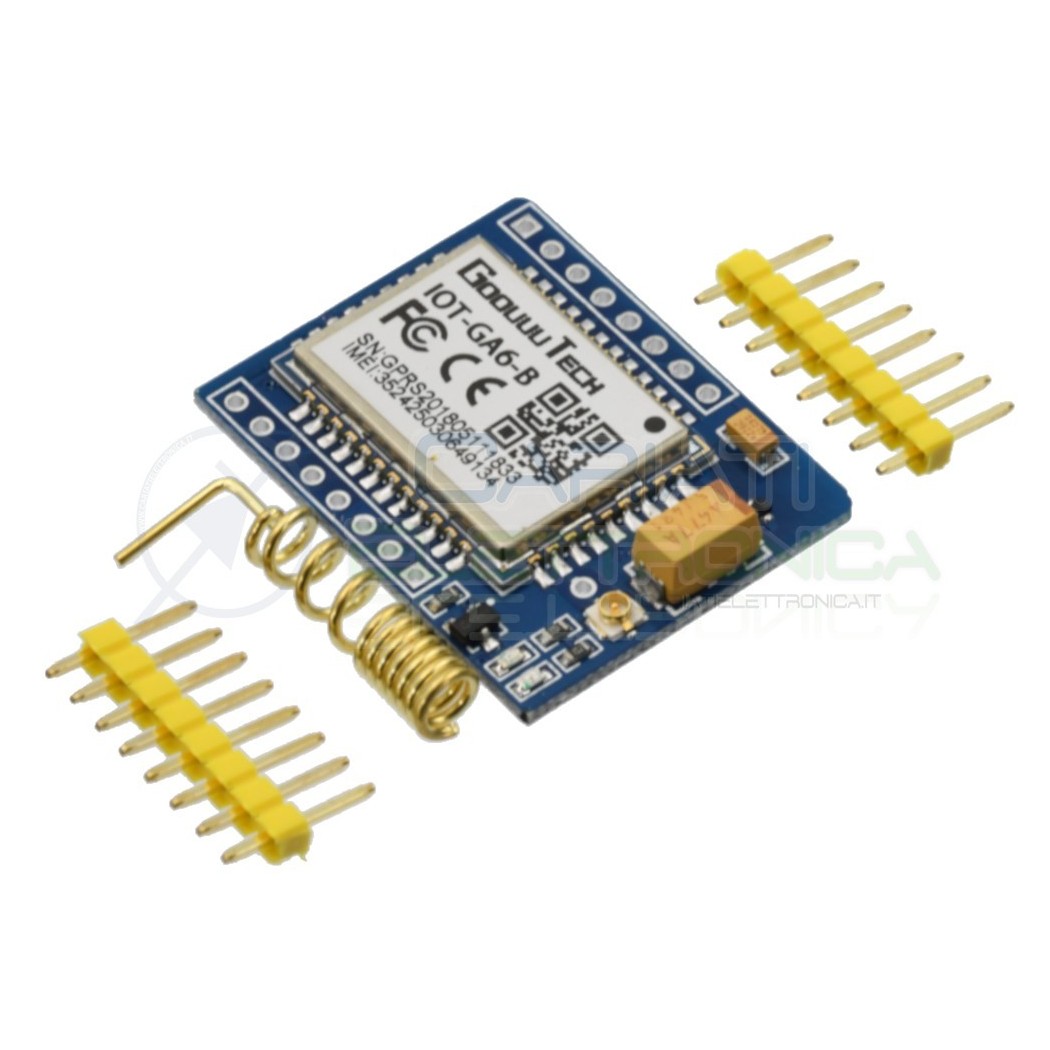

Module Name: GA6
GA6 size 22.8mm x 16.8mm x 2.2 mm;
Normal operating temperature: -30 ° C ~ +80 ° C,
Limited operating temperature: -40 ° C to -30 ° C and + 80 ° C to + 85 ° C *
Working voltage 3.5V-4.2V;
Boot voltage> 3.5V;
The flow rate in the uSLEEP mode is 0.9mA;
standby average current below 3ma;
supports GSM/GPRS four bands, including 85090018001900MHZ;
sensitivity <-105;
support voice calls;
supports SMS sms;
supports GPRS data services, the maximum data rate, Download 85.6Kbps, upload 42.8Kbps;
supports standard AT GSM07.07,07.05 commands and Thinker Ai extensions;
supports 2 serial ports, a download serial port, a AT command port;
command supports standard AT and TCP/IP command interface;
supports digital audio and analog audio, support HR, FR, EFR, AMR voice coding;
supports 3G 4G 2G mobile card
support ROHS, FCC, CE, CTA certification;
SMT 42PIN L package;
