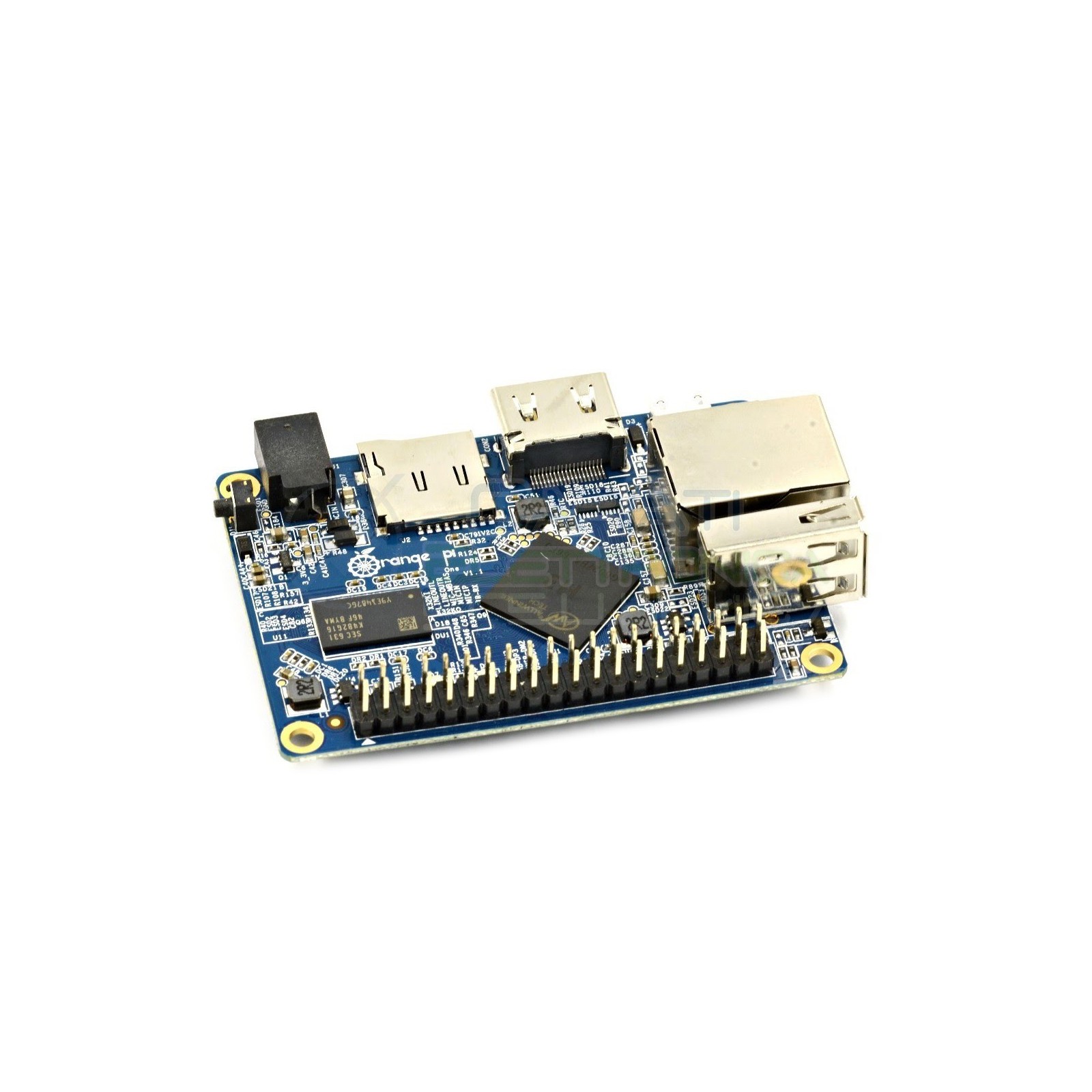

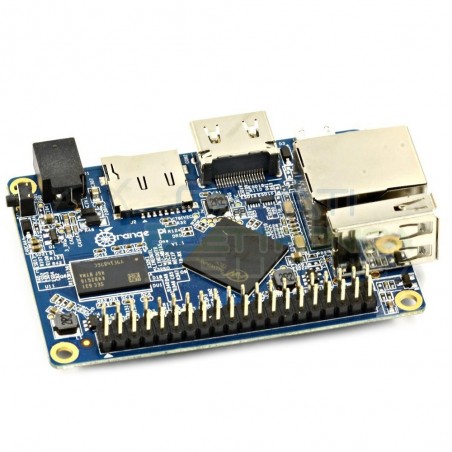

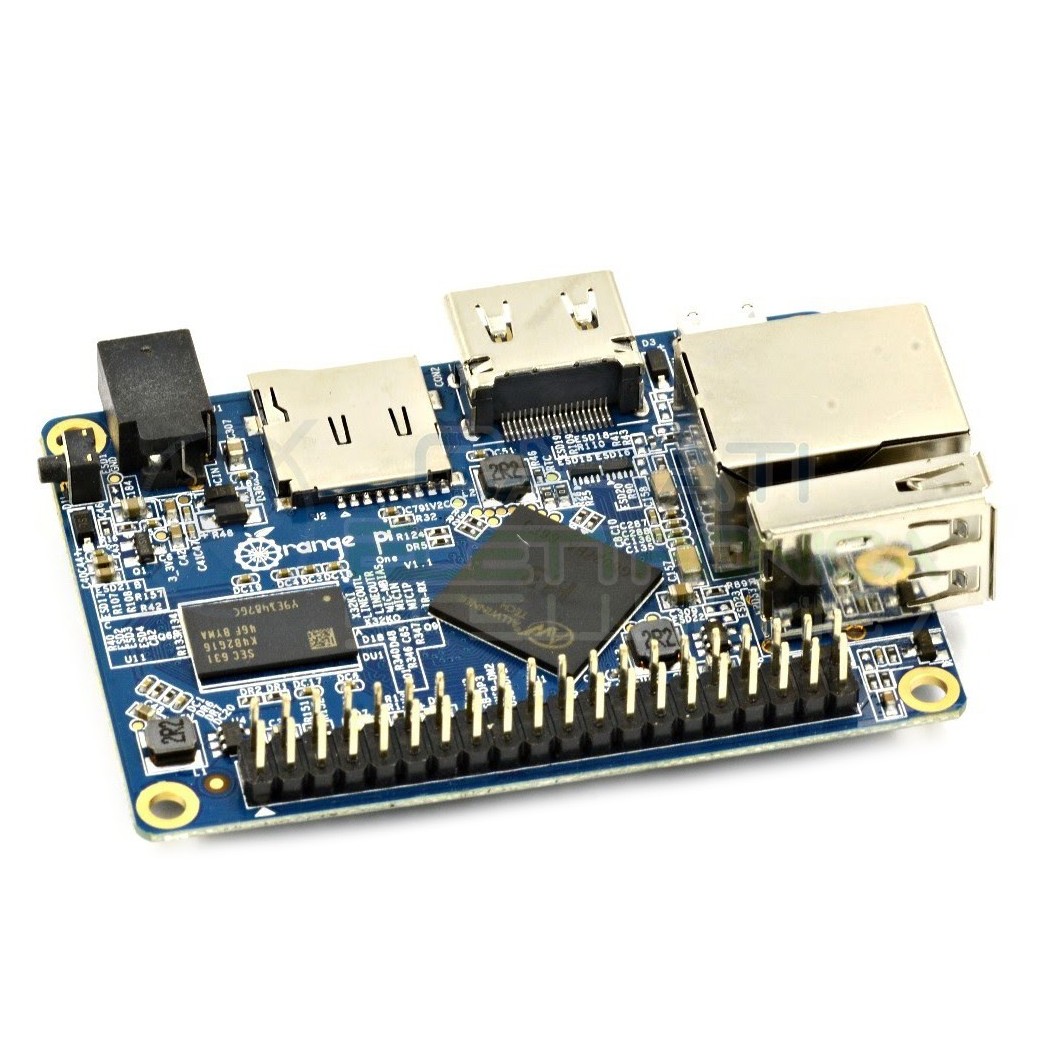

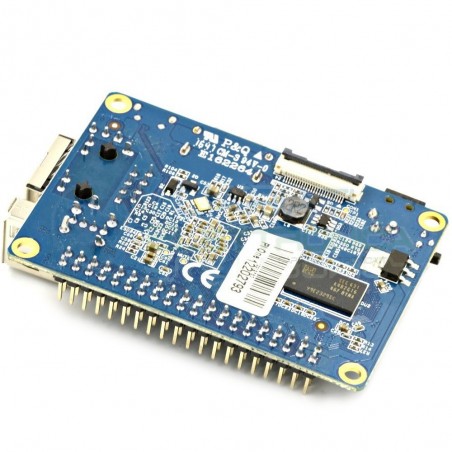

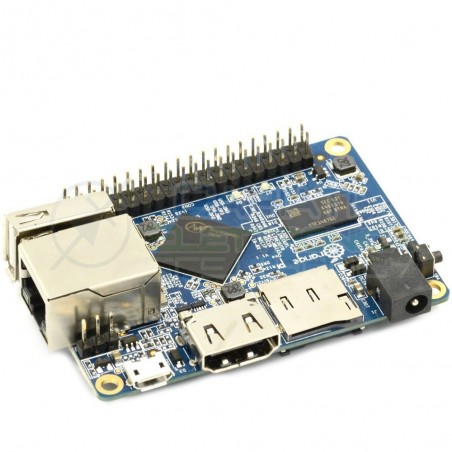

Con questa scheda si può costruire un mini PC, è un alternativa al Raspberry

Supporta OS Android Ubuntu, Debian, Raspbian Image

Interface definition

Maggiori info si possono ottenere consultando il sito www.orangepi.org/orangepione/

Può essere sviluppato con questa scheda

A computer
A wireless server
Games
Music and sounds
HD video
A speaker
Android
Scratch
Pretty much anything else, because Orange Pi One is open source

Info Hardware

CPU H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU ·Mali400MP2 GPU @600MHz
·Supports OpenGL ES 2.0
Memory (SDRAM) 512MB DDR3 (shared with GPU)
Onboard Storage TF card (Max. 32GB) / MMC card slot
Onboard Network 10/100M Ethernet RJ45
Video Input A CSI input connector Camera:

Supports 8-bit YUV422 CMOS sensor interface

Supports CCIR656 protocol for NTSC and PAL

Supports SM pixel camera sensor

Supports video capture solution up to 1080p@30fps
Video Outputs Supports HDMI output with HDCP

Supports HDMI CEC

Supports HDMI 30 function

Supports simultaneous output of HDMI
Power Source DC input can supply power, but USB OTG input don’t supply power
USB 2.0 Ports Only One USB 2.0 HOST, one USB 2.0 OTG
Buttons Power Button(SW4)
Low-level peripherals 40 Pins Header,compatible with Raspberry Pi B+
LED Power led & Status led
Key POWER
Supported OS Android Ubuntu, Debian, Raspbian Image
Interface definition
Product size 69 mm × 48mm
Weight 36g
