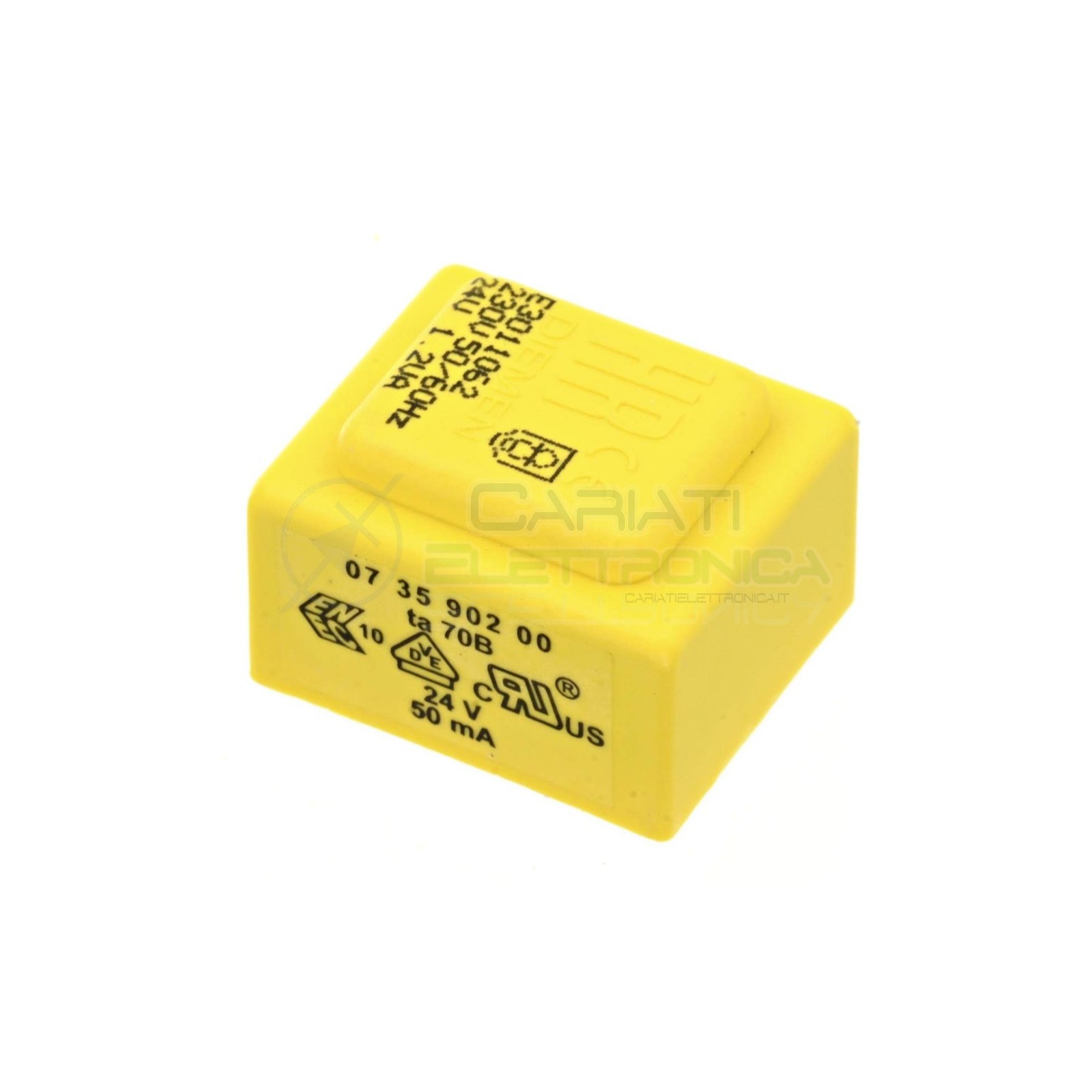

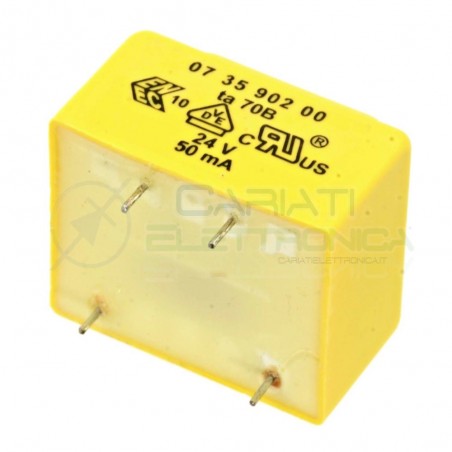

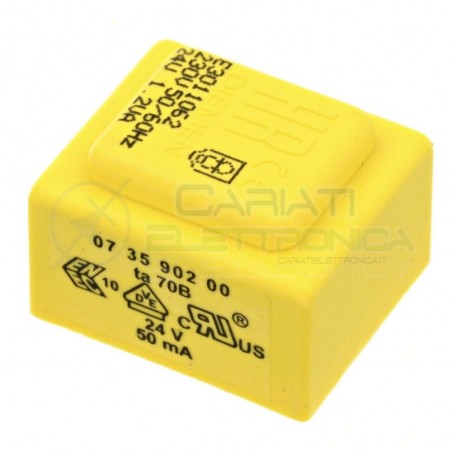

Trasformatore incapsulato per circuiti stampati da 24Vdc 1,2VA

Ingresso 230V

Uscita da 24V , 50ma

Technical characteristics:

Designed and manufactured according regulations EN61558 EN60590 EN60472 UL506 UL1585
Two-chamber coil
Vacuum sealed
Safety transformer class II / Protection index IP00 (For all models with no load voltage lower than 50V according to EN61558, and to 30V according to UL1585)
Short-circuit-protected
Self-extinguishing plastic UL94-VO
Epoxy resin class F
Isolation: Prim./Sec. = 10 MOhm to 500 Vcc - Sec./Sec. = 2 MOhm to 500 Vcc
Dielectric strength Prim. / Sec. = 5 kV / 1min.
Secondary voltage tolerances 5%
Test at 100% of all electrical parameters in production
Reliability tests for production batch (life term)
Certificates of production test results (under request)
Certifications VDE, UL (E346974); others certifications under request: CSA, SEMKO
