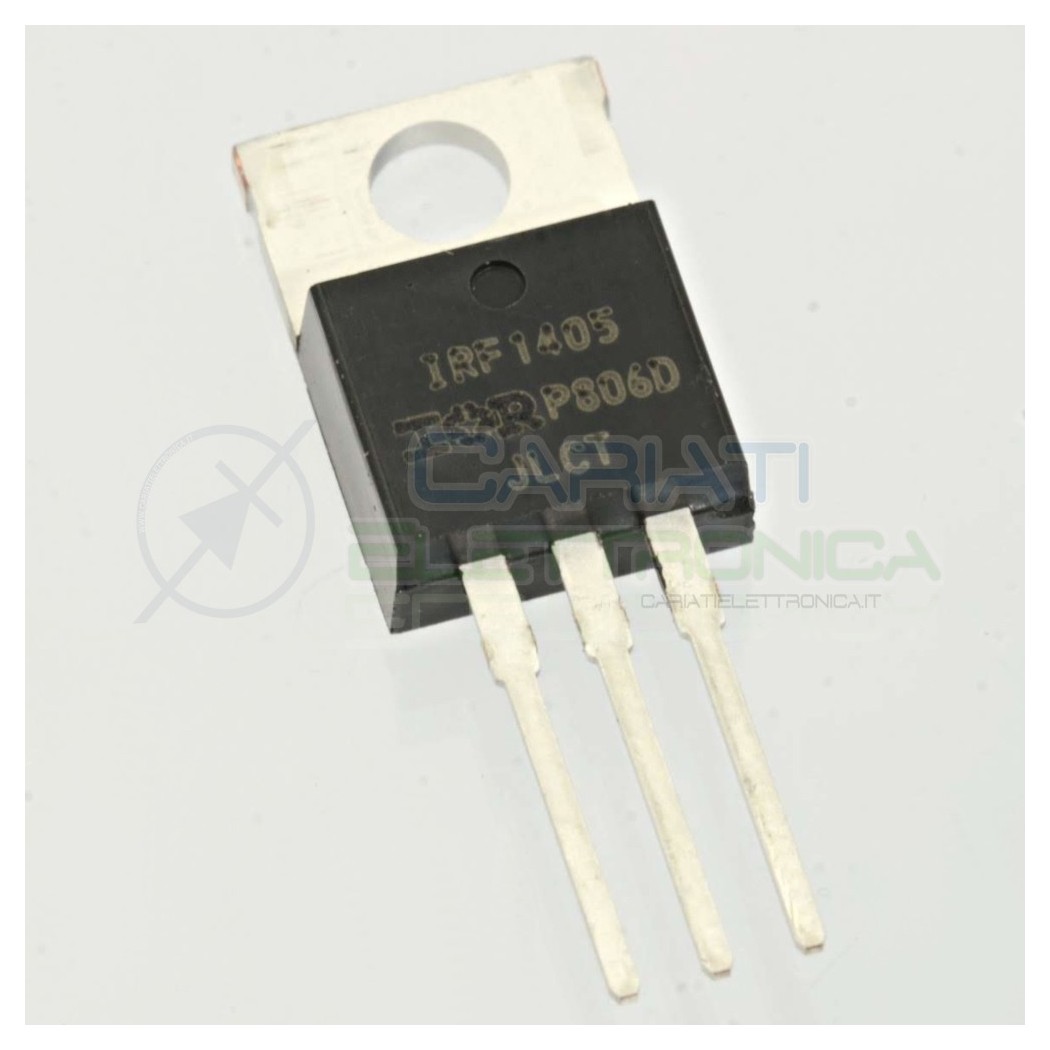

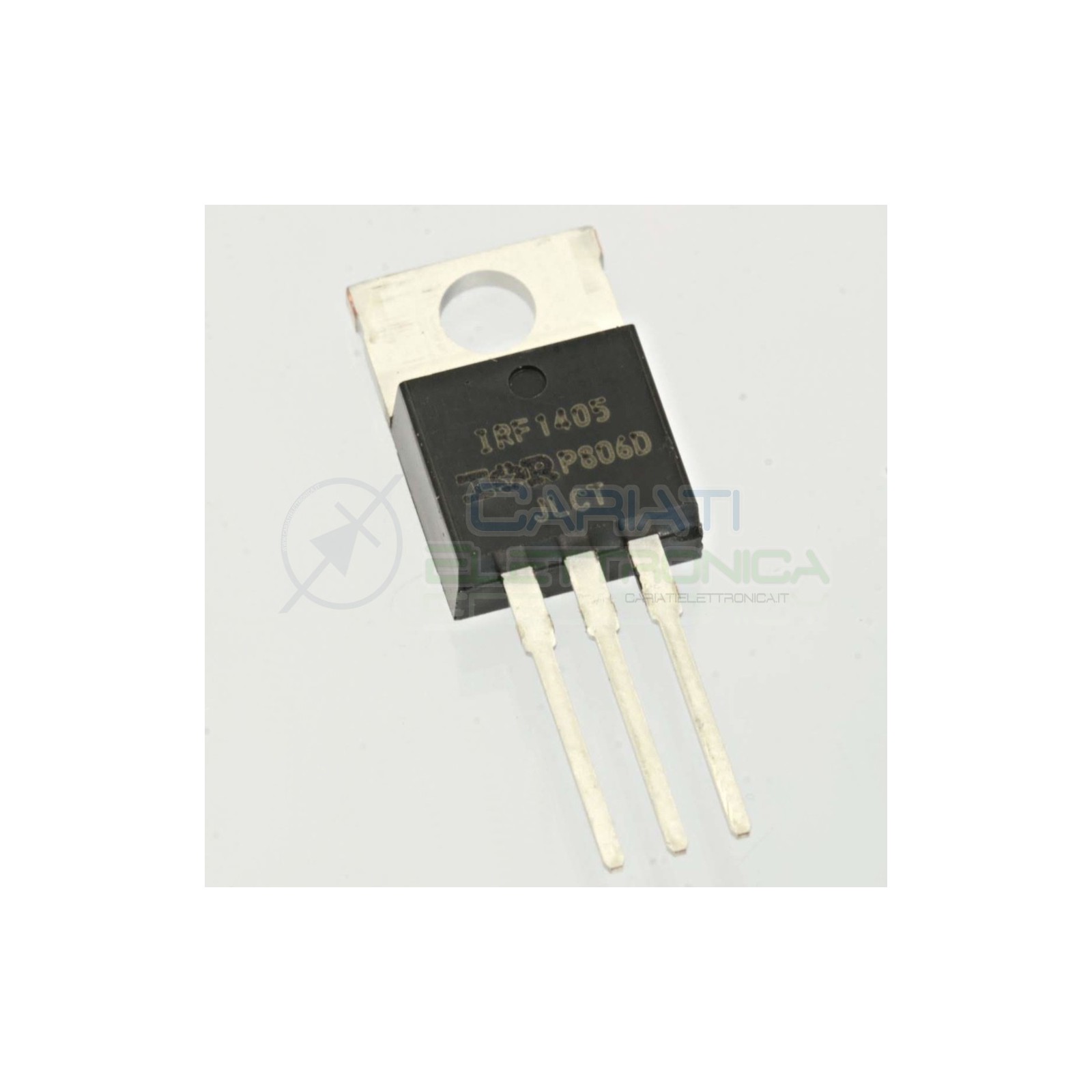

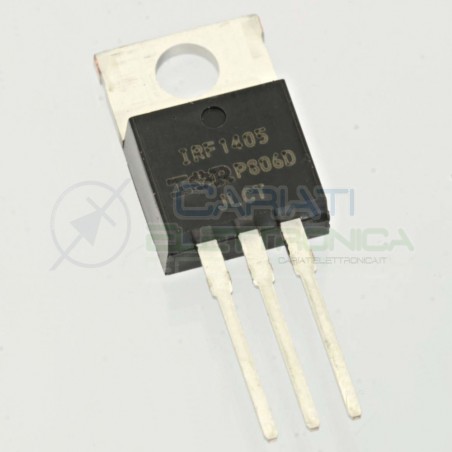

TRANSISTOR IOR IRF1405 N-MOSFET 55V 169A 330WATT TO-220

Specifiche tecniche del prodotto

RoHS (Unione Europea)

Compliant with Exemption

ECCN (Stati Uniti)

EAR99

Stato del componente

Active

Codice HTS

COMPONENTS

SVHC

Yes

Tasso di SVHC superiore ai limiti consentiti

Yes

Automotive

No

PPAP

No

Categoria prodotti

Power MOSFET

Material

Si

Configuration

Single

Process Technology

HEXFET

Channel Mode

Enhancement

Channel Type

N

Number of Elements per Chip

1

Maximum Drain-Source Voltage (V)

55

Maximum Gate-Source Voltage (V)

±20

Maximum Gate Threshold Voltage (V)

4

Maximum Continuous Drain Current (A)

169

Maximum Drain-Source Resistance (mOhm)

5.3@10V

Typical Gate Charge @ Vgs (nC)

170@10V

Typical Gate Charge @ 10V (nC)

170

Typical Input Capacitance @ Vds (pF)

5480@25V

Maximum Power Dissipation (mW)

330000

Typical Fall Time (ns)

110

Typical Rise Time (ns)

190

Typical Turn-Off Delay Time (ns)

130

Typical Turn-On Delay Time (ns)

13

Minimum Operating Temperature (°C)

-55

Maximum Operating Temperature (°C)

175

Packaging

Tube

Mounting

Through Hole

Package Height

9.02(Max) mm

Package Width

4.83(Max) mm

Package Length

10.67(Max) mm

PCB changed

3

Tab

Tab

Standard Package Name

TO

Supplier Package

TO-220AB

Pin Count

3

Lead Shape

Through Hole
