Caratteristiche tecniche

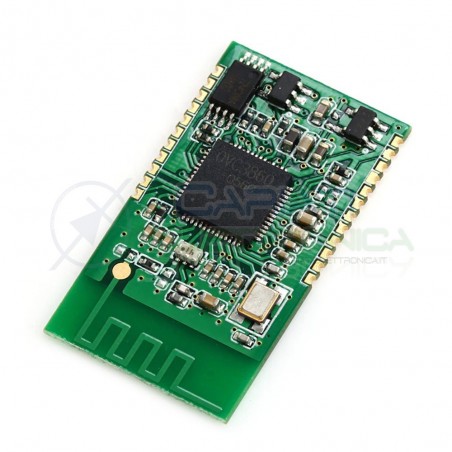

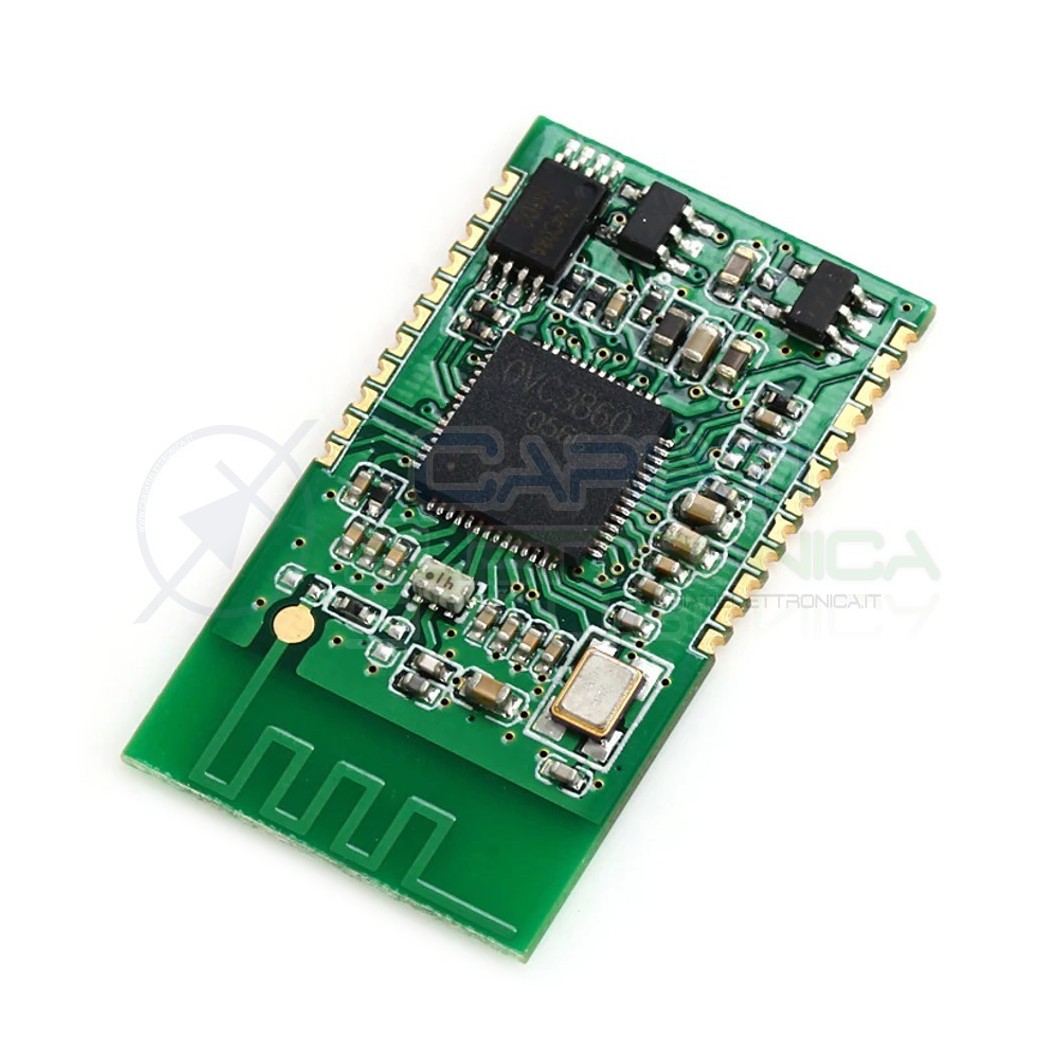

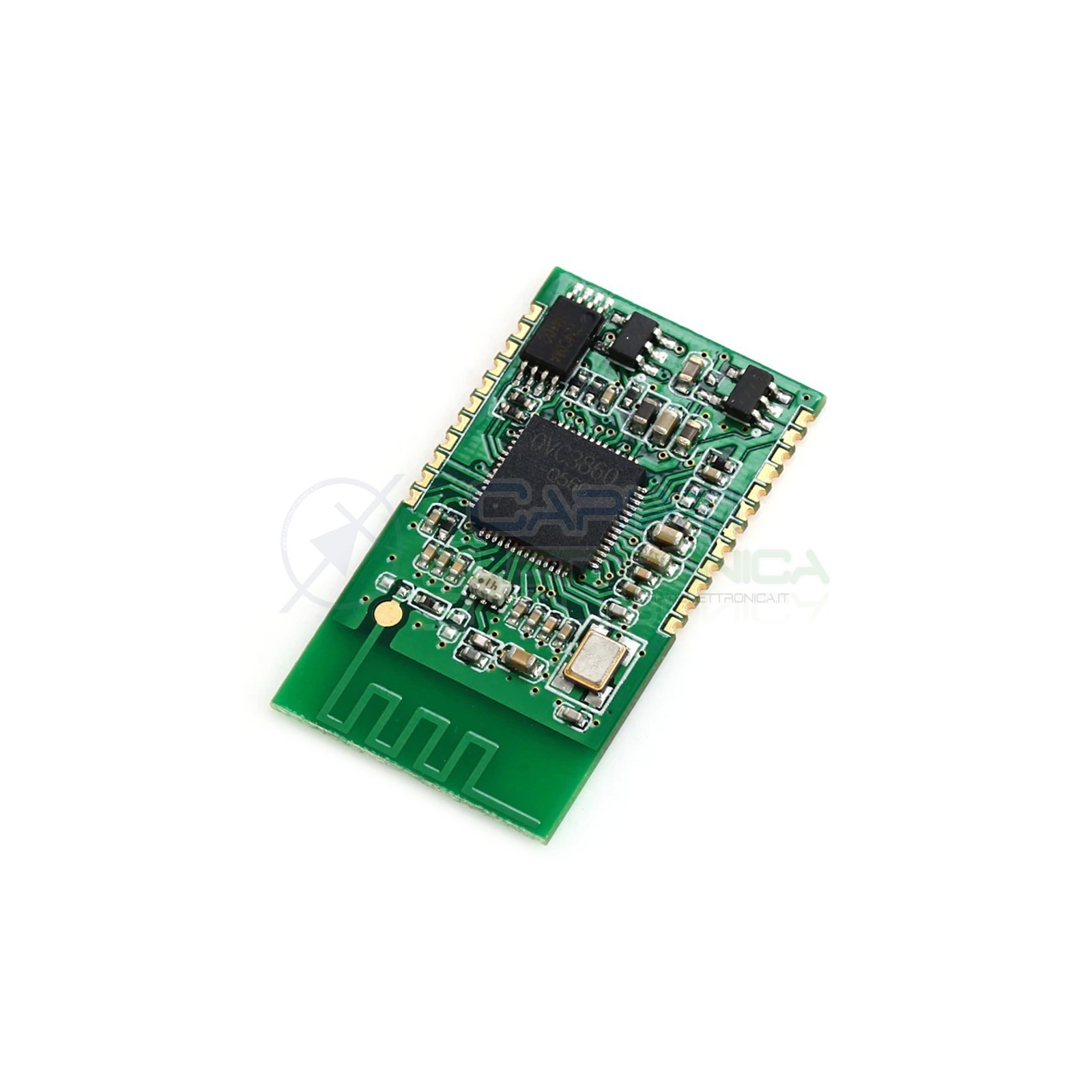

XS3868 Bluetooth Audio Module
Buletooth:Version 2.0
Frequency:2.402-2.480GHz
Power:4dBm(at antenna pad)
Receive sensitivity:Better than-82dBm
Range:10meters
Data Rates:Up to 3Mbps(over the air)
UART Data transfer rate: 115200bps
Host Interface: UART: No flow control support
Audio interface: Microphone: Mono microphone input with bias
Profiles:
A2DP V1.2 -Sink Only
AVRCP V1.4-Controller Only
HSP V1.2
HSP V1.5
Supply Voltage: DC 3.6V-4.2V DC
Power Consumption:
Current Consumption:
Operational- Less than 55mA(active)
Idle(sleep)<10mA
Connections: External Antenna: Connection via SMT pad
