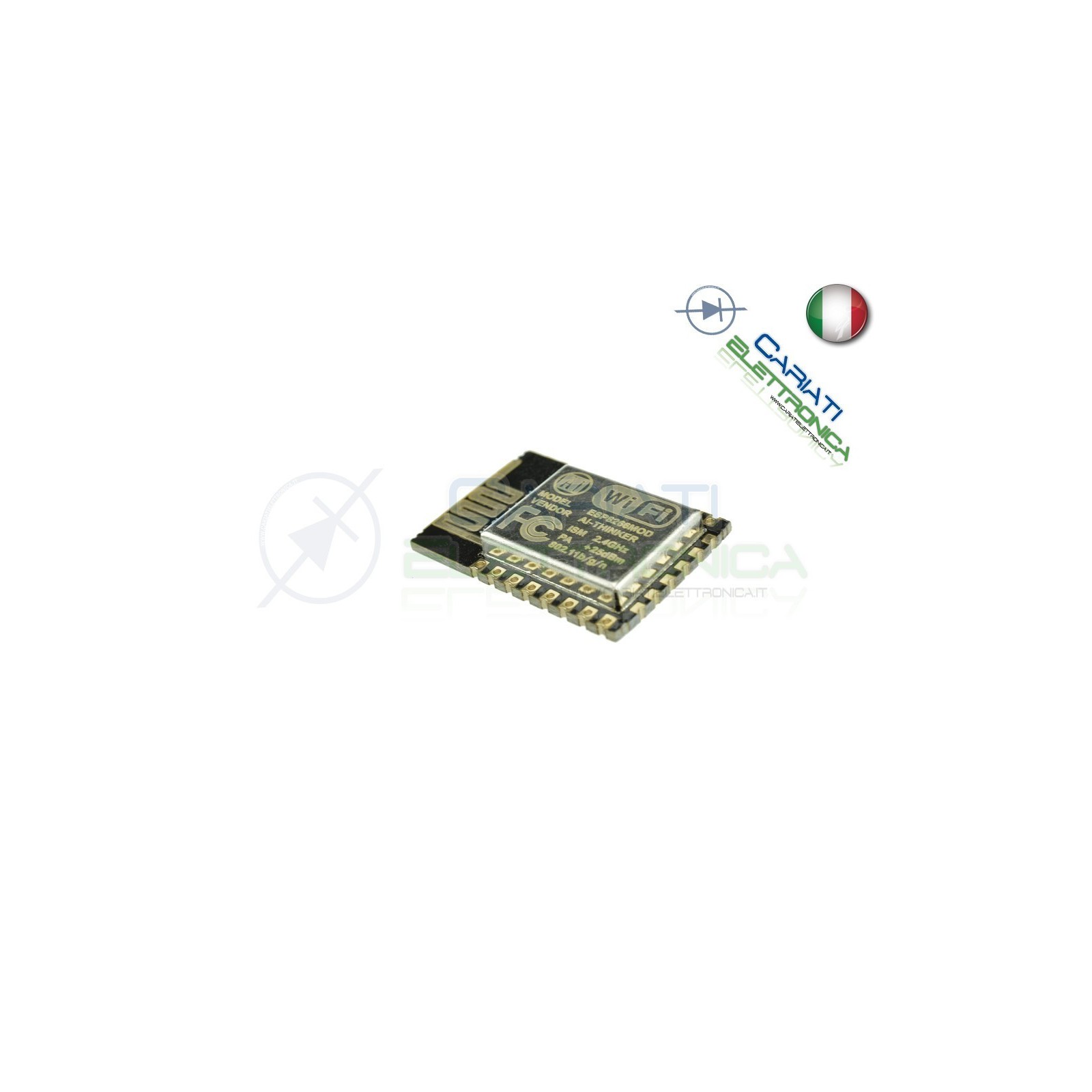

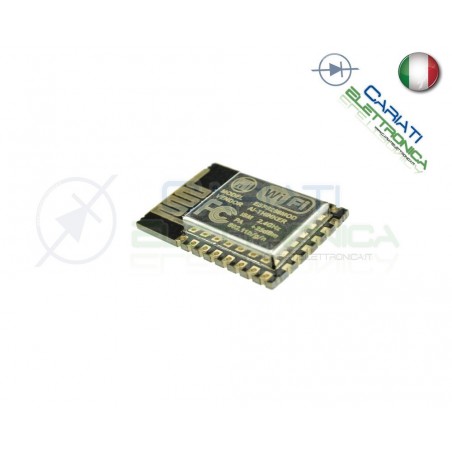

Modulo ESP-12E ESP8266 WiFi Transceiver Module

Alimentazione: 3,3V

Specifiche tecniche:

● 802.11 b/g/n
● Wi-Fi Direct (P2P), soft-AP
● Integrated TCP/IP protocol stack
● Integrated TR switch, balun, LNA, power amplifier and matching network
● Integrated PLLs, regulators, DCXO and power management units
● +19.5dBm output power in 802.11b mode
● Power down leakage current of <10uA
● Integrated low power 32-bit CPU could be used as application processor
● SDIO 1.1/2.0, SPI, UART
● STBC, 1×1 MIMO, 2×1 MIMO
● A-MPDU & A-MSDU aggregation & 0.4ms guard interval
● Wake up and transmit packets in < 2ms
● Standby power consumption of < 1.0mW (DTIM3)
● LWIP agreement
● Support 3 modes: AP, STA, AP+STA
● Perfect and simple AT commands
