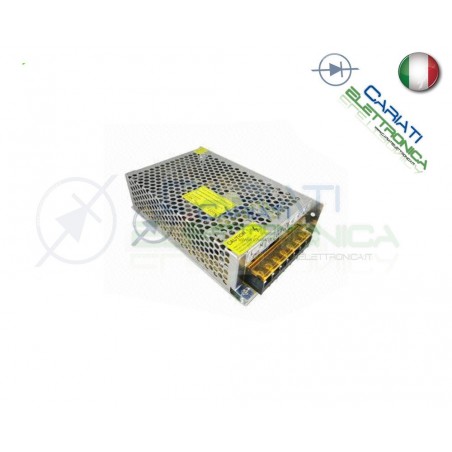

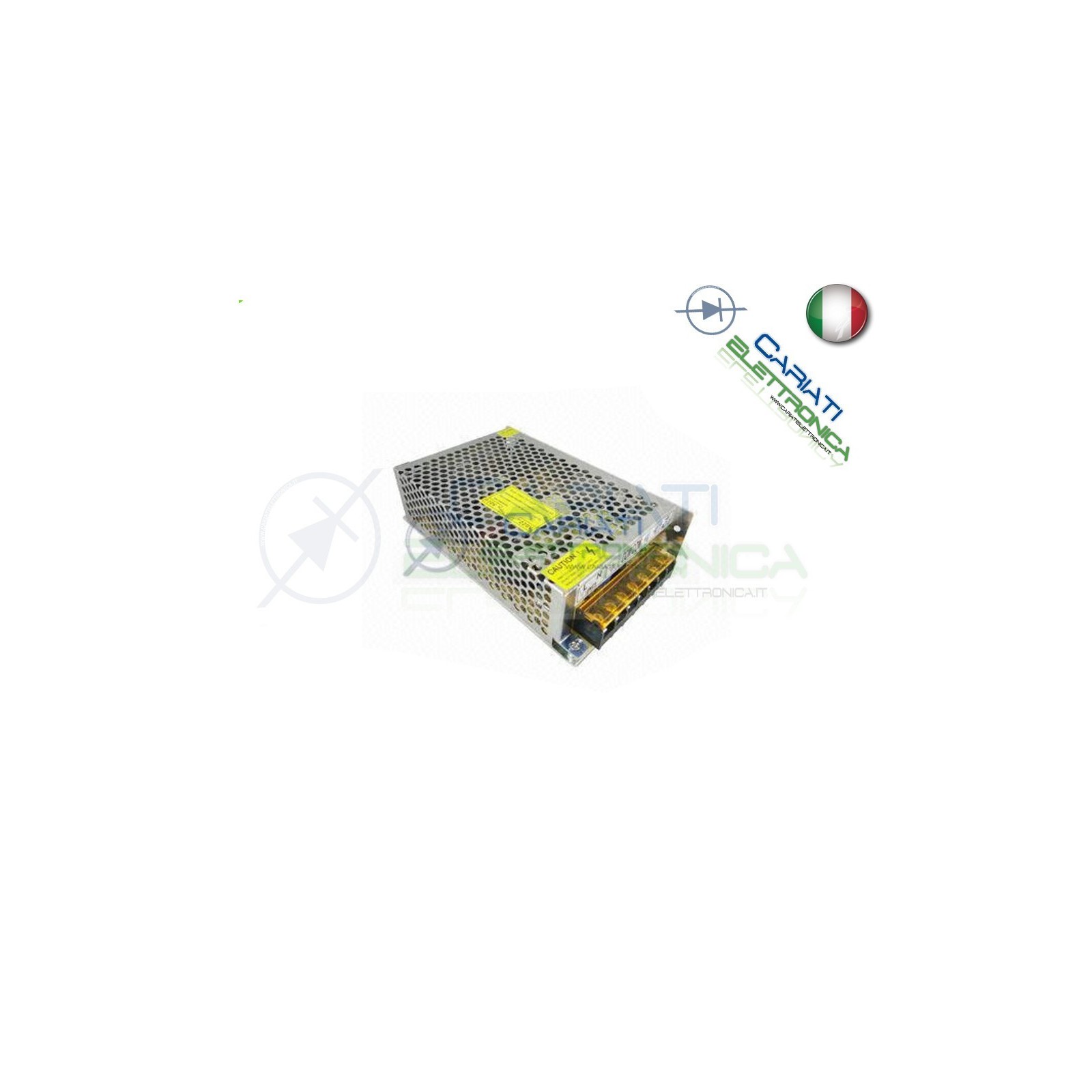

ALIMENTATORE SWITCHING 230Vac 12V 15A 180W CCTV LED

ALIMENTATORE SWITCHING 230Vac 12V 15A 180W CCTV LED

Switching15

17,99 €
Tasse incluse
Quantità
Non ci sono abbastanza prodotti in magazzino

  • Pagamenti sicuri (Paypal , Bonifico, Contrassegno) Pagamenti sicuri (Paypal , Bonifico, Contrassegno)
  • Spedizioni veloci (merce disponibile e spedizioni con Corriere) Spedizioni veloci (merce disponibile e spedizioni con Corriere)
  • Supporto e garanzia di qualità (assistiamo il cliente in tutte le fasi) Supporto e garanzia di qualità (assistiamo il cliente in tutte le fasi)

Descrizione

ALIMENTATORE SWITCHING 12V 15A 180W

Dimensioni 198×98×35mm

Le sue caratteristiche tecniche sono le seguenti

Output voltage tolerance



12V





Output voltage tolerance



±1%





Rated output current



15A





Output current range



0~15A





Ripple and noise



100mVp-p





Inlet stability



±0.5%





Load stability



±0.5%





DC output power



180W





Efficiency



85,00%





Adjustable DC voltage



±10%





Input voltage range

85~264V AC;47-63Hz

Input current

0.8A/115V 0.45A/230V

Impulse current

Cold start-up current 18A/115V36A/230V

Leakage current

<0.5mA/240VAC

high-temperature protection

105%~150% style:Cut off the output reset: auto recovery

Temperature coefficient

±0.03%/℃(0~50℃)

Start rising hold time

200ms,100ms,30ms

Isolation Resistance

 Input and enclosure, Output and enclosure:500VDC/100MΩ

Working temperature

-10℃~+60℃,20%~90%RH

Storage temperature

-20℃~+85℃,10%~95%RH

Size

198×98×35mm

Weight

0.55Kgs

Dettagli del prodotto

Switching15

Scheda dati

Corrente
15A
Tensione d'ingresso
230V AC
Tensione d'uscita
12V

riferimenti specifici
