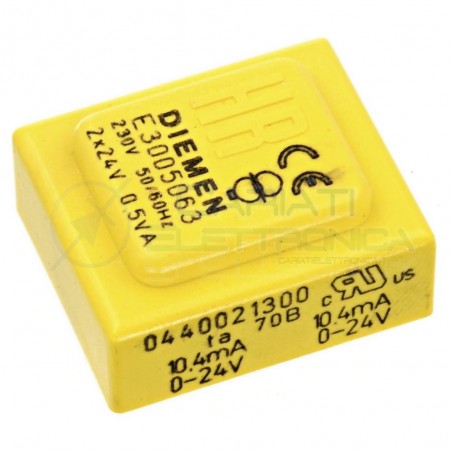

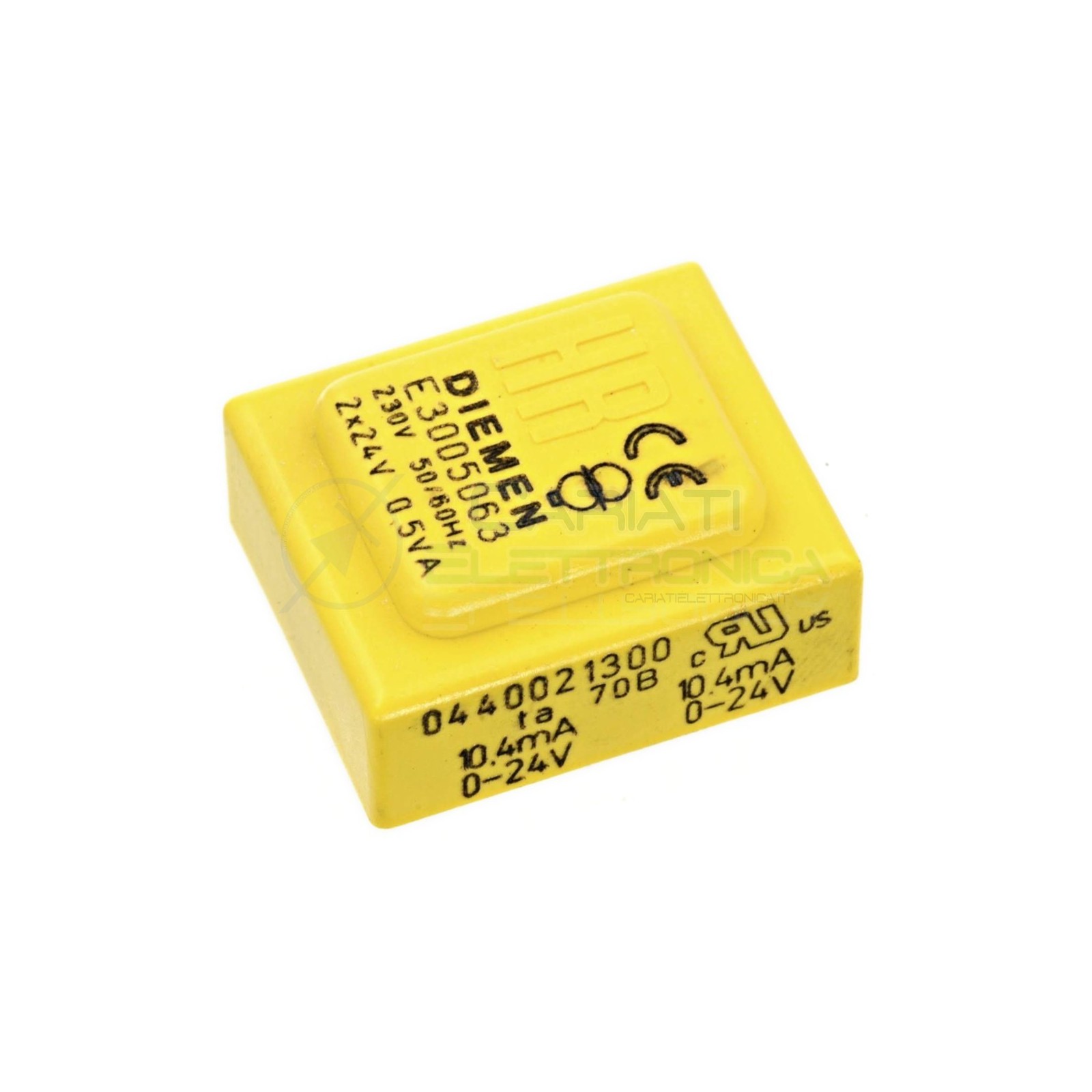

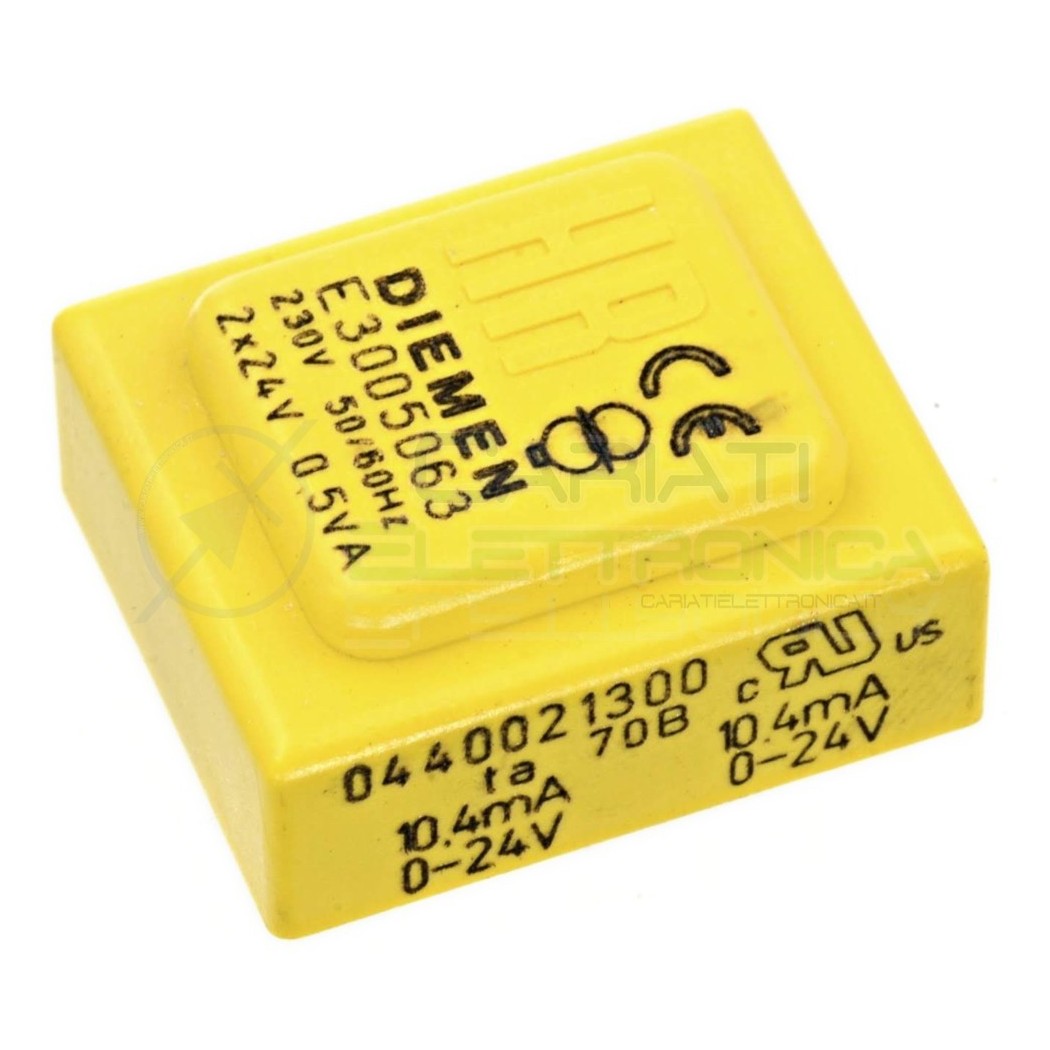

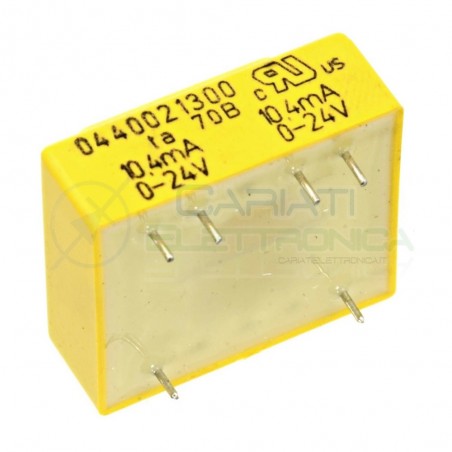

Trasformatore incapsulato per circuiti stampati da 24Vac 0,5VA

Ingresso 230V

Uscita da 2 x 24V , 10ma per canale

Technical characteristics:

• Designed and manufactured according regulations EN61558 EN60590 EN60472 UL506 UL1585

• Two-chamber coil

• Vacuum sealed

• Safety transformer class II / Protection index IP00 (For all models with no load voltage lower than 50V according to EN61558, and to 30V according to UL1585)

• Short-circuit-protected

• Self-extinguishing plastic UL94-VO

• Epoxy resin class F

• Isolation: Prim./Sec. = 10 MOhm to 500 Vcc - Sec./Sec. = 2 MOhm to 500 Vcc

• Dielectric strength Prim. / Sec. = 5 kV / 1min.

• Secondary voltage tolerances 5%

• Test at 100% of all electrical parameters in production

• Reliability tests for production batch (life term)

• Certificates of production test results (under request)

• Certifications VDE, UL (E346974); others certifications under request: CSA, SEMKO
