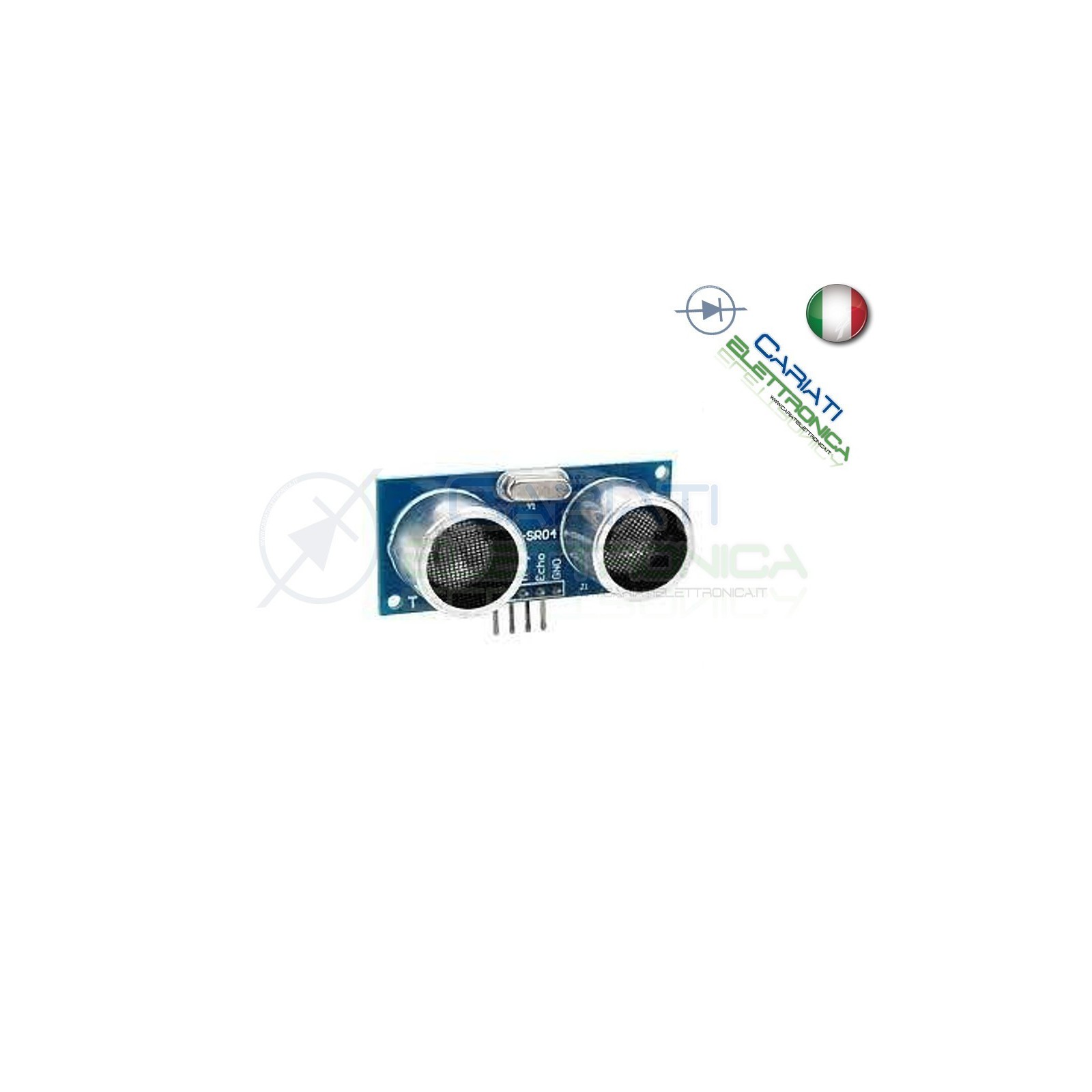

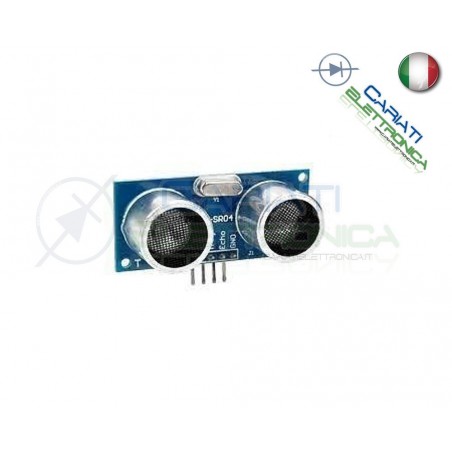

Ultrasonic Module HC-SR04 Distance Measuring Range Transducer Sensor Arduino PI
962-FOX3-115
9 Items
€1.99
VAT included
-
Secure payments (Paypal , TT)
-
Fast ship ( items in stock and ship by courrier)
-
Best support and warranty
Description
Working Voltage : 5V DC
Static current: Less than 2mA.
Output signal: Electric frequency signal, high level 5V, low level 0V.
Sensor angle: Not more than 15 degrees.
Detection distance: 2cm-450cm.
High precision: Up to 0.3cm
Input trigger signal: 10us TTL impulse
Echo signal : output TTL PWL signal
Mode of connection:
1.VCC 2.trig(T) 3.echo(R) 4.GND
