Circuito di protezione per 4 batterie 18650 Litio Li-ion PCB battery 16.8V 15A

Circuito di protezione per 4 batterie 18650 Litio Li-ion PCB battery 16.8V 15A

3923-FOX3-695

€4.50
VAT included
Quantity
There are not enough products in stock

  • Secure payments (Paypal , TT) Secure payments (Paypal , TT)
  • Fast ship ( items in stock and ship by courrier) Fast ship ( items in stock and ship by courrier)
  • Best support and warranty Best support and warranty

Description

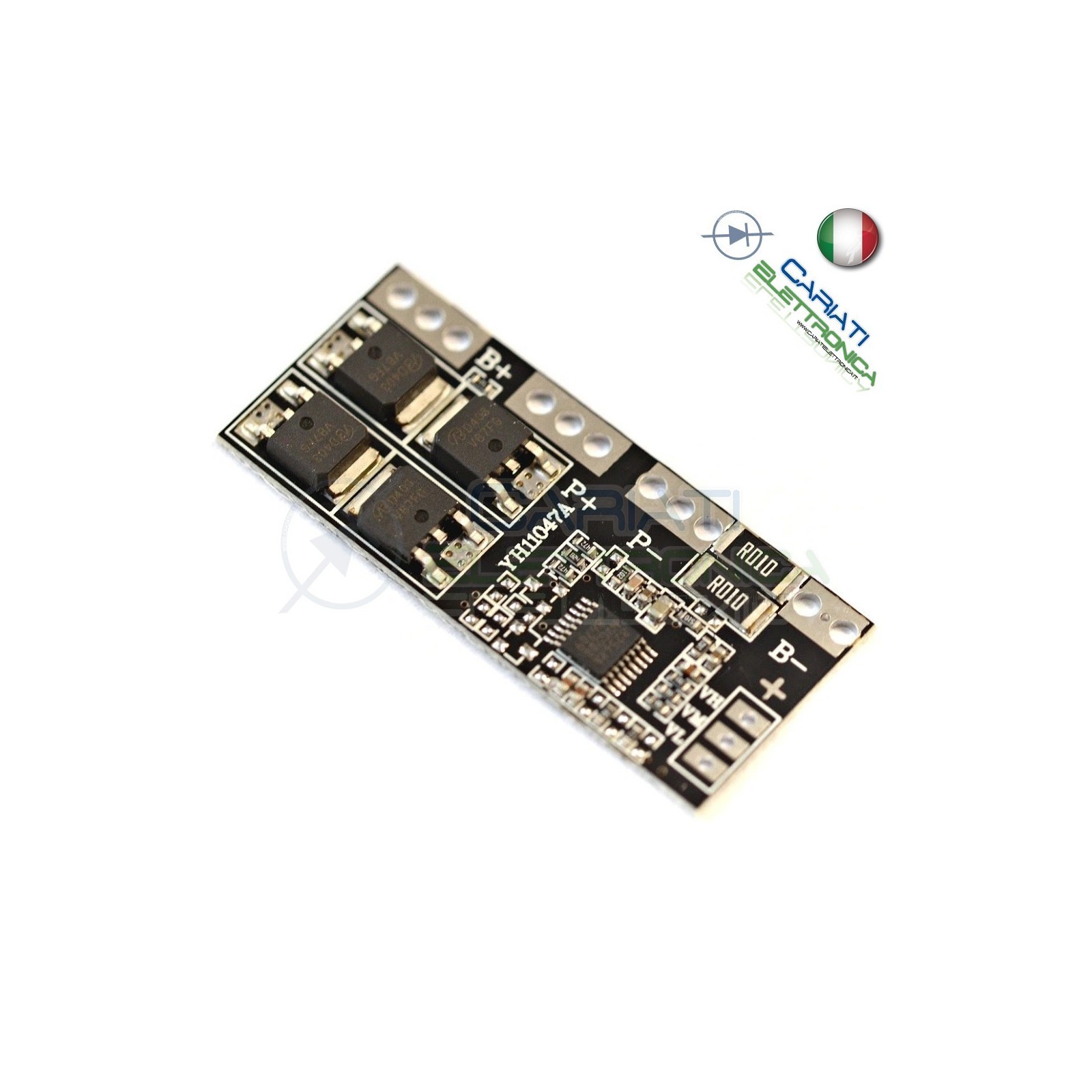

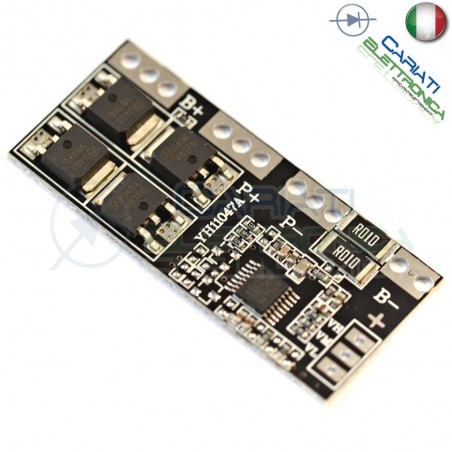

Scheda di protezione per 4 batterie in serie a litio li-ion

Con esso è possibile ottennere sui morsetti P- e P+ una tensione 16.8V (4.2Vx4) e una corrente max di 10A

Protezione contro i cortocircuiti

Protezione da sovraccarico

Protezione da sottotensione

Protezione da sovracorrente

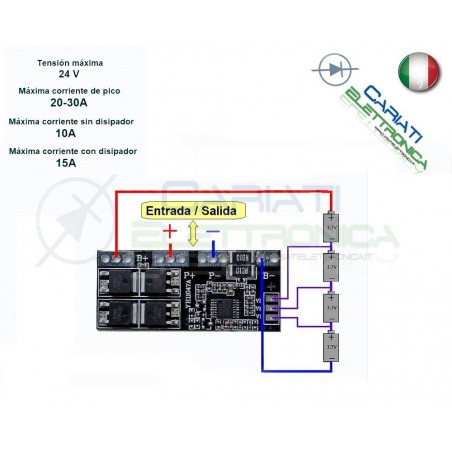

Questo PCB protegge le batterie agli ioni di litio configurate in 4S (4 batterie in serie)

da un eccesso di carica o scarica.

Le protegge da sovracorrente, limitando la corrente massima a 10A (con dissipatore 15A), e corto circuito.

Questo modulo non è un circuito di carica!

Un caricabatterie adeguata deve essere utilizzato per ricaricare correttamente le batterie

Per la carica si consiglia di applicare una tensione max di 16.8V (4.20x4)

Charging voltage range: 4.25-4.35 v±0.05v
Size: 48 * 15 * 1.0 mm
Discharge voltage range: 2.5-3.0V±0.05v
Maximum working current: 10A
Working temperature: - 40 --- +50C
Maximum instantaneous current: 30A
Storage conditions: - 40 --- +80C
Static electricity: less than 6 uA
Useful life time: more than 50000 hours
Resistance: less than 45 m Ω
Short circuit protection: can protect,need charging

Dimensioni: 50x22 mm
